Complete automatic chicken farm solution:
- Main feeding line system
- Automatic pan feeding line system
- Automatic nipple drinking line system
- Ventilation system
- Cooling pad system
- Environment control system
- Heater system
- Plastic slat floor system

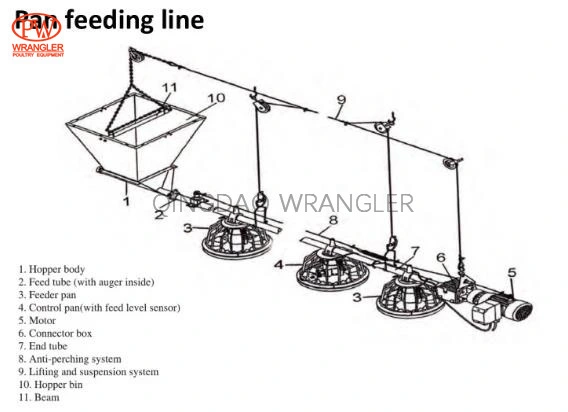

Auger feed system for poultry including:
1. Feeding system
Feed pan is the core of feeding system. Feed in the hopper is delivered by the motor, through delivery pipe to fulfill feed pans one by one. When all feed pan is full of feed, control box will stop the motor from working; when feed in the feed pan is eaten up, control box will start the motor working again.
Feed line motor:
High quality special driving reduction motor:
Taiwan motor with overload protection of ip55
Power: 0.75kw voltage: 380v, frenquency:50hz, 3phases
Transmission speed: 450kg/h
Bin volume: 115 L 200L, material: hot-dip galvanized sheet
material thickness: 1mm
All type feed pan as your inquiry. New PP material
Feed pipe material:hot dip galvanized steel pipe(275g/m2 zinc coating)
Conveying pipe:3m with 3 pan or 3m with 4 pan
Auger--imported from South Africa.
The function of delivery system is to transmit the feed outside shed to the hopper of feeding system
inside, control system indicates delivery system to work automatically.
3.Feed storage system(silo/manpower hopper):
Feed of poultry raising farm is stored in the silo, so as to save large account of feed, and also to
ensure the good condition of feed. Different specifications of silos are alternative to choose according
to the daily consumption and the size of silo. Materials of silo consist of galvanized sheet and glass fiber
4.Electric control system
Control box control the whole system. The control box works sensitively and steadily is extremely
important, sensitivity and steady are the base of choosing electronic components. In order to avoid

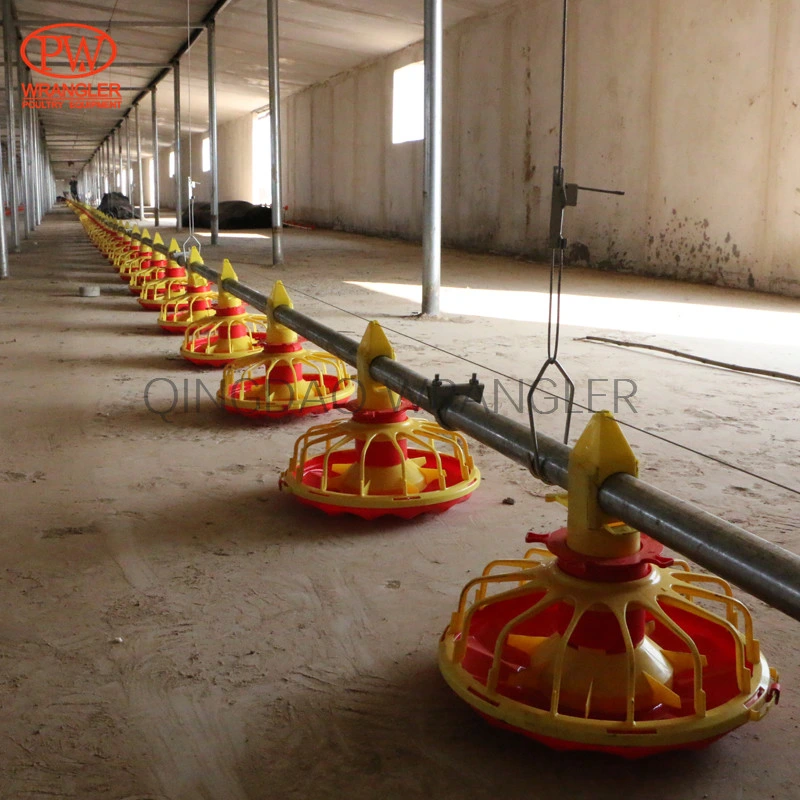

Application in chicken house:
COMPLETE POULTRY SHED DESIGN please fill out the form
Chicken House Size
|(length x width x height)|
Broiler:Quantity and Final Weight
Breeder or Layer:Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
|(broiler/ breeder/ layer)|
Temperature range of Farm Location.
|( ~ ºC)|
|Close type:bricks building wall with 36" fans and air inlets|
Open type :curtain in two sides.
Q. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q. What is your terms of delivery?
A: FOB, CFR, CIF.
Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
PLEASE SEND THIS FORM TO ME, AND START YOUR OWN POULTRY BUSINESS NOW!
